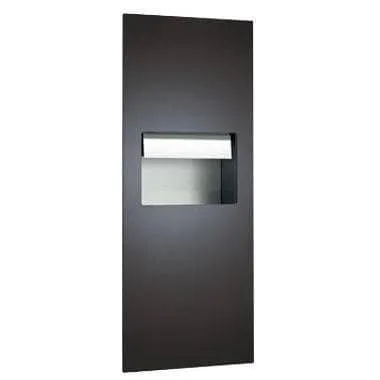

ASI 64696AC-41 Piatto Recessed Automatic Roll Paper Towel Dispenser (AC Plug-In), Black Phenolic Door, 16-1/16" x 41-1/4 x 9-11/16"

Please note: once in production ASI Piatto items cannot be canceled or returned. Please double check your measurements before ordering.This sophisticated automatic paper towel dispenser and waste receptacle is designed to be completely recessed into the plane of the washroom wall highlighting the seamless design that defines Piatto. The phenolic door is attached to the cabinet using field-adjustable furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto Collection its minimalist appeal.Proximity sensing no-touch unit holds and dispenses one 8_ diameter [¯203] x 8_ wide [203] standard towel roll up to 800 ft. (244m) long and one 8_ wide [203] stub roll up to 4_ diameter [¯102] and automatically changes over to main roll when finished with stub roll when feed tabs are properly engaged. Dispenser is powered by AC plug-in adapter Ð C-UL-US and CE approved internal low-voltage adapter (supplied) using 110- 240VAC 50/60 Hz and providing output of 5VDC @ 1A and operates automatically to activate towel dispensing when hands are placed in sensor zone. At each activation unit feeds out a length of towel selected by owner by setting length delay and paper saver switches.Waste receptacle has a capacity of 9.9 gallons (37.3 L) and is emptied manually.Finished Wall Opening (FWO):16-1/8" x 41-5/16" x 10" (410 x 1049 x 254 mm) minUnit Size:16-1/16" x 41-1/4" x 9-11/16" (408 x 1048 x 246 mm)
